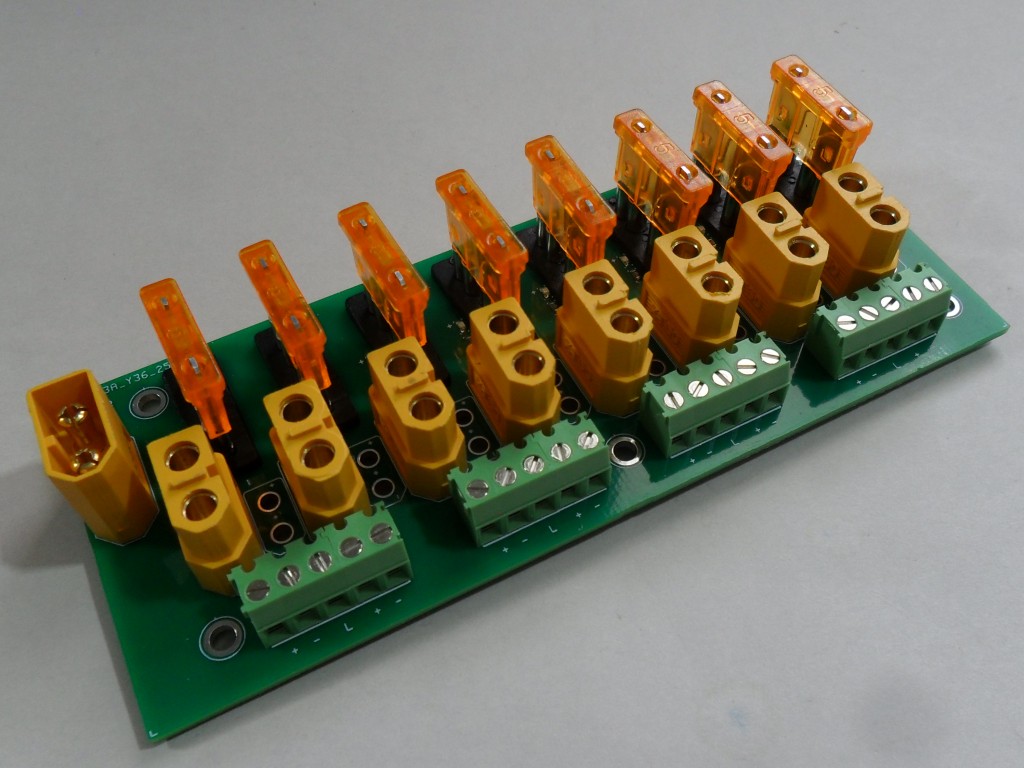

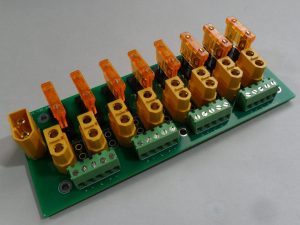

This is a 12V or 24V fused power distribution board.

DC fused distribution board

Designed for use with our solar-battery power system for the computer cabinet and workbench.  Allows easy connection and fuse protection on each connection.

One XT60 input and 8 XT60 or XT30 fused outputs.  Uses standard automotive blade fuses with LED indicator of blown fuse.  Screw terminals for smaller loads, local lights, fans, etc.

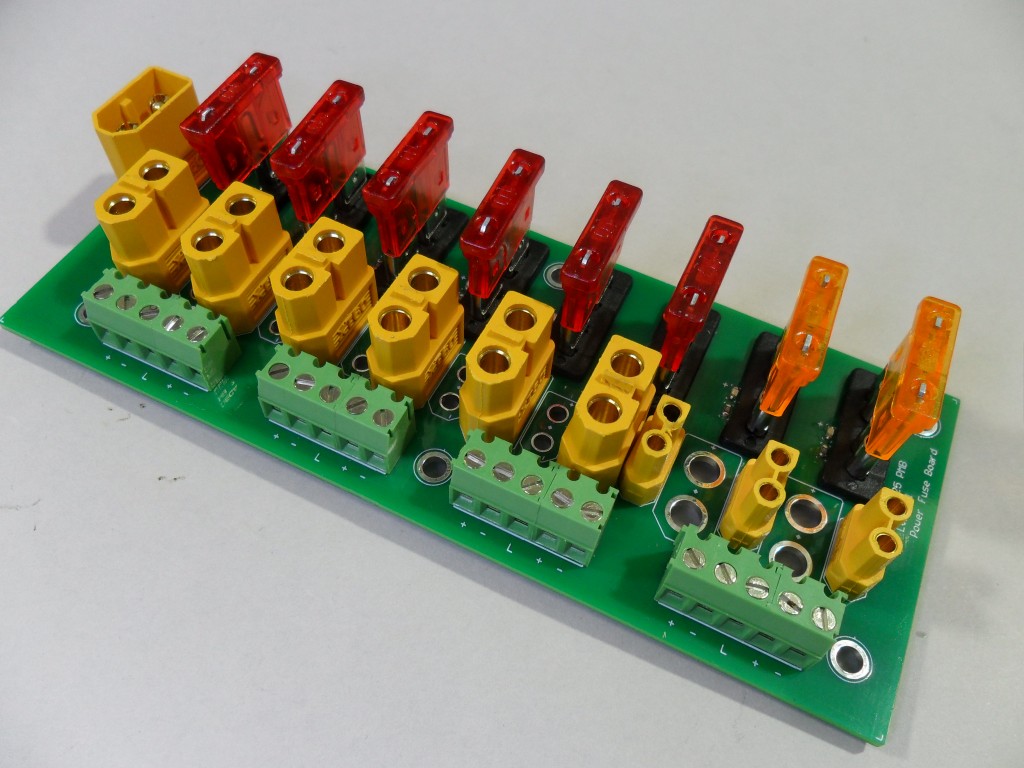

Can be assembled with XT60 or XT30 output connectors or a combination of both.

Recommended fuses up to 10A maximum.  Do not fuse higher than just above the maximum load.  Fuses are slow or do not blow on small overloads.
